SUMMARY

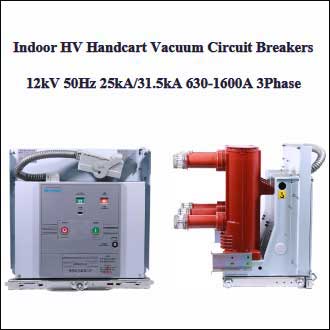

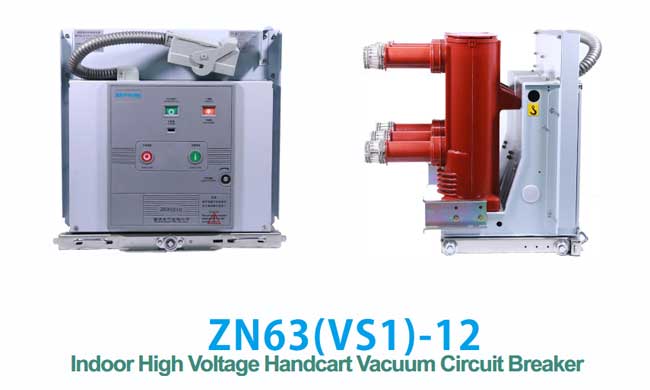

ZN63(VS1)-12 indoor high voltage handcart vacuum circuit breaker is applied to 12Kv,three-
phase,Ac 50Hz . lt can provide control and protection for industrial and mining enterprises,power plants
and substations, electrical facilities, and is suitable for frequent operation.The operating mechanism is
integrated with the circuit breaker and the design can be used as a fixed installation unit. lt can also be a
special propulsion mechanism to forma handcart unit.The main loop adopts the integral solid pole to
realize the miniaturization, high reliability and free maintenance of the circuit breaker, lt can be used in

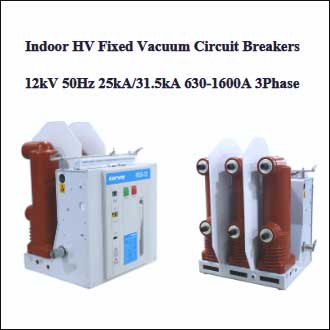

KYN28A-12 (GZS) and other center-mounted handcar switchgears. the fixed type could also be used in
the XGN series fixed switchgear.
APPLYING AMBIENT CONDITIONS
- Ambient temperature: -30°C~+40°C.
- Relative humidity: the average humidity of a day should be no more than95%. The average
humidity of a month should be no more than 90%.
- Earthquake intensity: not exceed 8 degrees.
- Saturated vapor pressure: the average pressure of a day should be no more than 2.2kPa;
the average pressure of a month should be no more than1.8Kpa.
- The height above sea level: ≤ 1000 m (Except special requirements).
- It should be installed in the places without fire, explosion, serious filth,and chemical
erosion and violent vibration.
|
