CURRENT
TRANSFORMER (BH-0.66)
Technical Data :
-
Secondary current Isn :5A
-
Max. voltage rating Ue : 660 V]
-
Safety factor (fs) : 10
-
Degree of protection : IP20
-
Operating temp. : -5oC to 40 oC,humidity <80%
-
Standards : IEC/EN 60044-1
-
Installation type : mounting on plates or bars
-
Class : 1
|
|
|
| |
|
| |
|

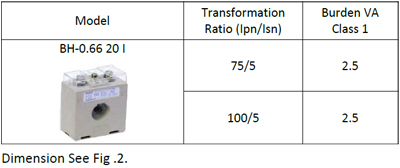

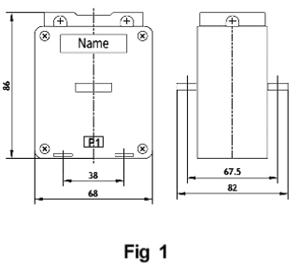

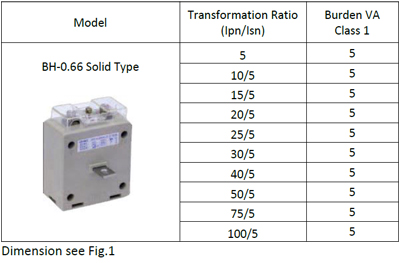

| BH-0.66
20 I (Maximum cable size : ø 20 mm) |
|
|
|
|
| |
|
| Model

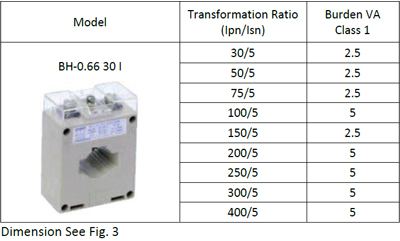

BH-0.66 30 I (Maximum bus bar size : 30 x 10 mm) |
|
|
| |
|
| |
|
| BH-0.66
30 I 0.2 class |
|
|
|
| |
|
| |
|

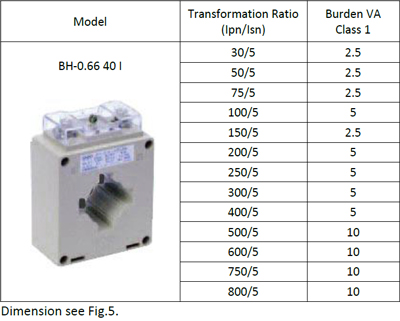

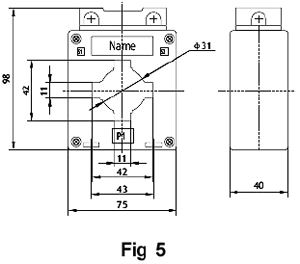

| BH-0.66
40 I |
|
|
| |
|
| |
|

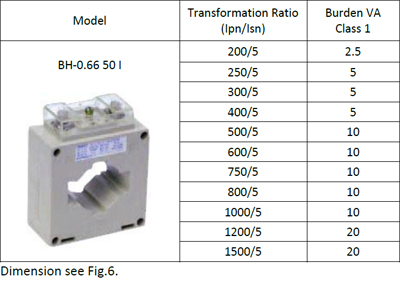

| BH-0.66
50 I |
|
|
| |
|
| |
|

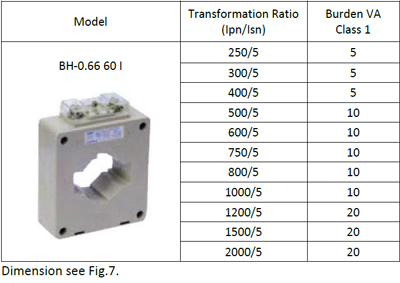

| BH-0.66
60 I |
|
|
| |
|
| |
|

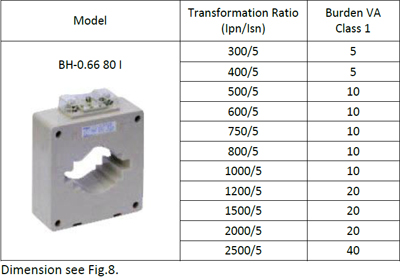

| BH-0.66
80 I |
|
|
| |
|
| |
|

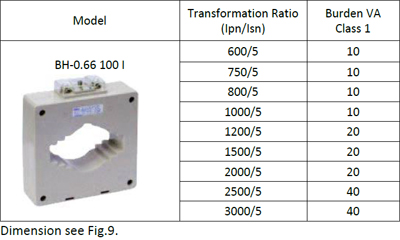

| BH-0.66
100 I |
|
|
| |
|
| |
|

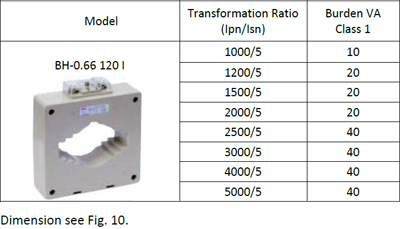

| BH-0.66
120 I |
|
|
| |
|
| |
|

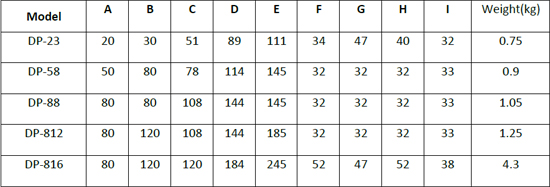

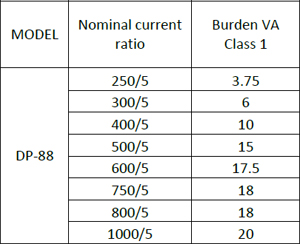

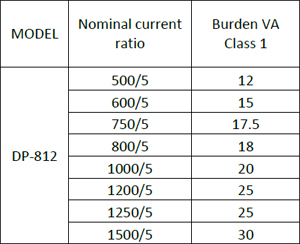

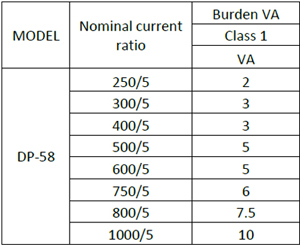

SPLIT
CORE CURRENT TRANSFORMERS DP SERIES
The main Feature of DP transformers are :
-
Small size and easy mounting
-
Wide inner window allowing clamping of big cables or bus
bars
-
Wide range of sizes to accommodate all the existing installation.
-
High accuracy and reliability.
-
Simple and Robust operating mechanism
-
Rotary handle with ON/OFF indication.
-
Dual termination for bus bar as well as cable connection
-
Advance Neutral
Technical Data :
-
Primary current : 100A-5000A
-
Secondary current : 5A,1A
-
Standard approval : IEC44-1 , BS7626, VDE0414, VL94
-
Maximum voltage : 0.72/3kV
-
Frequency : 50/60 Hz
-
Rated load : 1VA-30VA
-
Class : 1
-
Short-time thermal current : Ith
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
| |
|
|
|
|
|
| |
|
 |
| |
|
 |
PT.
